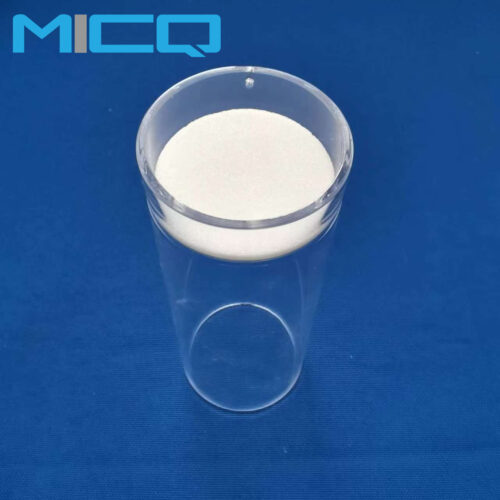

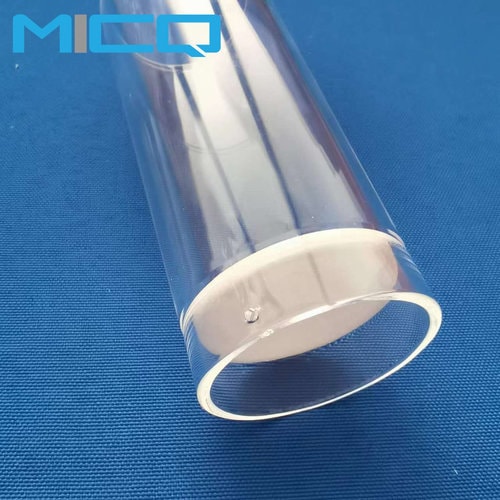

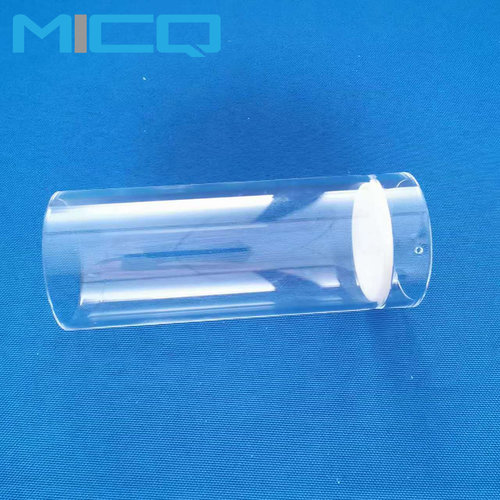

Custom Large Size Quartz Filtration / Sintered Glass Filter Funnel with Sintered Disc

Description

Custom Large Size Quartz Filtration / Sintered Glass Filter Funnel with Sintered Disc

Custom Large Size Quartz Filtration : Sintered Glass Filter Funnel with Sintered Disc

Large Size Quartz Filtration is composed of quartz frits and quartz tubes. It can also be made into various shapes according to different needs, such as Sintered Glass Filter Funnel and quartz straight tube filter with sintered disc. During the production of quartz fitted glass filter, we will prepare a quartz tube and a quartz frit in advance. The outer diameter of quartz frit needs to be close to or slightly smaller than the inner diameter of the quartz tube. First, place the quartz frit in the corresponding position inside the quartz tube. Then heat the quartz tube at high temperature. After heating to the softening point of the quartz tube, there is a pressing tool to squeeze the position of the quartz sinter. Finally, fix the quartz frit in the quartz tube. The thicker the quartz tube, the more difficult it is to process. Our company can make large-sized quartz sinned glass tubes / funnels. Welcome to inquire.

Fused Quartz Glass Features:

Fused quartz glass is a special industrial glass made of silicon dioxide. It is a very good basic material. Quartz glass has a series of excellent physical and chemical properties.

1. High temperature resistance. The softening point of fused quartz glass is about 1730℃ and can be used for long time working under 1100℃~1250℃.  And working at 1450℃ in a short time.

2. Corrosion resistance. In addition to hydrofluoric acid, fused quartz glass is inert to other acids. Its acid resistance is 30 times as ceramic, 150 times as stainless steel. Especially, any other material cannot make a comparison with chemical stability of fused quartz at high temperature

3. The thermal stability is good. Thermal expansion coefficient is extremely small. And it can withstand severe temperature changes such that heating up to 1100℃ and putting it in normal temperature water will not crack.

4. The light transmittance is good. Quartz glass has good transmittance in the whole spectral band from ultraviolet to infrared. The transmittance of the visible light is above 95%. Especially in the ultraviolet spectrum band and the maximum transmittance is over 85%.

5. The electrical insulation performance is good. Resistance value of quartz glass equaling to 10000 times of ordinary glass. It is an excellent electrical insulating material and has good electrical properties even under high temperature.

As a leading China fused quartz glass supplier and manufacturer, we are providing best price as well as quality for all kinds of customized fused quartz products. We are also willing to look for long term partners who are a distributor or wholesaler specialized in fused quartz glass in local.

For prompt quotation, please contact us at below form.

LEAVE A MESSAGE

Fused quartz glasses have the excellent properties for their following features:

• High working temperature
• Thermal shock resistance
• High electrical insulation
• Optical transparency
• Chemical inertness
