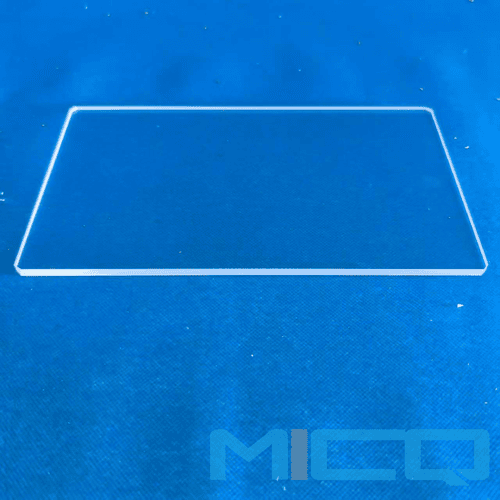

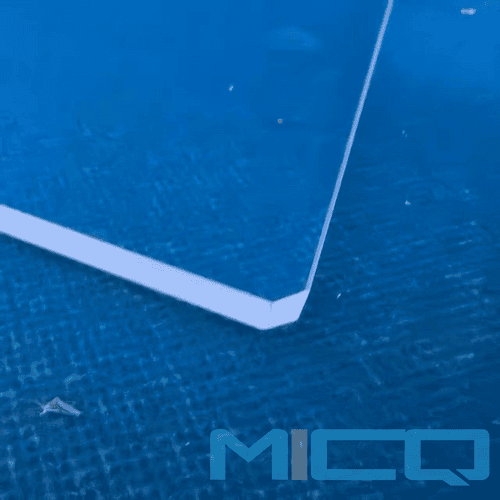

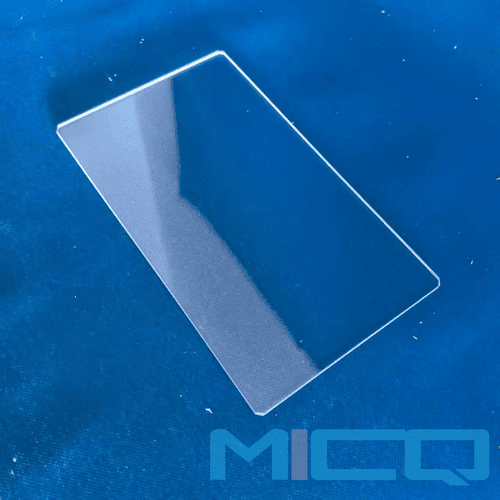

Fused Quartz Glass Plates with Precise C-cut JGS1/JGS2/JGS3

Fused Quartz Glass Plates with Precise C-cut JGS1/JGS2/JGS3

C-Cut is a common process in quartz glass plates JGS1/JGS2/JGS3 processing, mainly used to meet the requirements of specific frequency, temperature stability, or installation structure.

Characteristics of C-angle cutting

Piezoelectric performance:
The C-Cut quartz plate exhibits piezoelectric effect in the direction perpendicular to the Z-axis (XY plane), but its piezoelectric activity is weaker compared to AT cut or BT cut.
Mainly used for sensors or resonators with specific vibration modes, such as thickness shear mode or longitudinal wave mode.

Optical performance:
Due to the Z-axis being the optical axis of quartz, the C-Cut quartz plate has no birefringence effect on light propagating along the Z-axis, making it suitable for use in optical windows or retarders (requiring high-purity quartz).

Temperature stability:
The temperature coefficient of C-Cut is worse than that of AT-Cut, and it is usually not used for high-precision frequency control (such as crystal oscillators), but may be selected in some acoustic devices.

Fused Quartz Glass Features:

Fused quartz glass is a special industrial glass made of silicon dioxide. It is a very good basic material. Quartz glass has a series of excellent physical and chemical properties.

1. High temperature resistance. The softening point of fused quartz glass is about 1730℃ and can be used for long time working under 1100℃~1250℃.  And working at 1450℃ in a short time.

2. Corrosion resistance. In addition to hydrofluoric acid, fused quartz glass is inert to other acids. Its acid resistance is 30 times as ceramic, 150 times as stainless steel. Especially, any other material cannot make a comparison with chemical stability of fused quartz at high temperature

3. The thermal stability is good. Thermal expansion coefficient is extremely small. And it can withstand severe temperature changes such that heating up to 1100℃ and putting it in normal temperature water will not crack.

4. The light transmittance is good. Quartz glass has good transmittance in the whole spectral band from ultraviolet to infrared. The transmittance of the visible light is above 95%. Especially in the ultraviolet spectrum band and the maximum transmittance is over 85%.

5. The electrical insulation performance is good. Resistance value of quartz glass equaling to 10000 times of ordinary glass. It is an excellent electrical insulating material and has good electrical properties even under high temperature.

As a leading China fused quartz glass supplier and manufacturer, we are providing best price as well as quality for all kinds of customized fused quartz products. We are also willing to look for long term partners who are a distributor or wholesaler specialized in fused quartz glass in local.

For prompt quotation, please contact us at below form.

LEAVE A MESSAGE

Fused quartz glasses have the excellent properties for their following features:

• High working temperature
• Thermal shock resistance
• High electrical insulation
• Optical transparency
• Chemical inertness
