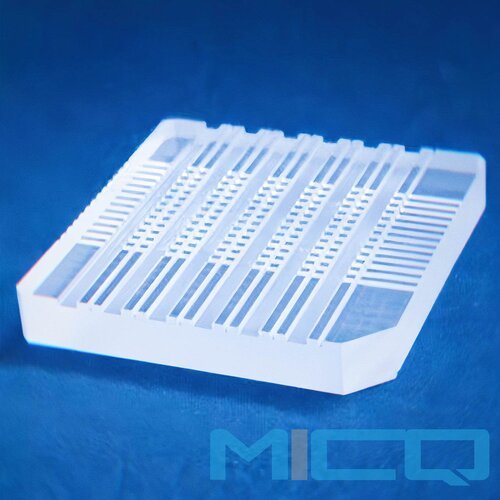

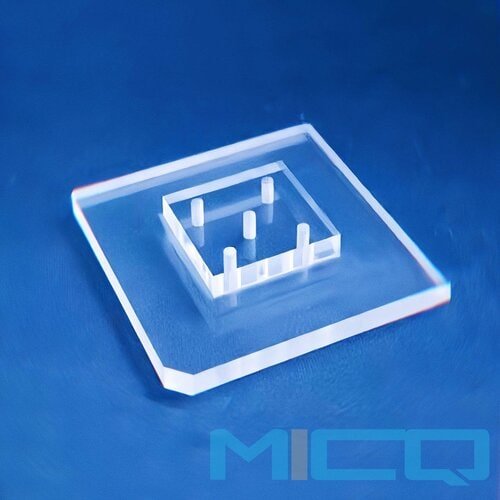

Custom Fused Quartz Glass Plates for Laser Drilling & Slotting

Custom Fused Quartz Glass Plates for Laser Drilling & Slotting

Quartz Glass/Fused Silica (SiO₂) is a high-performance specialty industrial glass, characterized by its high hardness, high melting point, corrosion resistance, low thermal expansion coefficient, and excellent optical transparency (from ultraviolet to infrared). Therefore, it finds widespread applications in high-precision and advanced fields such as semiconductors, optics, photovoltaics, medical devices, aerospace, and more.
Traditional machining methods (such as diamond tool cutting and drill bit drilling) face numerous challenges when processing hard and brittle materials like quartz, including edge chipping, microcrack generation, rapid tool wear, high machining stress, and difficulty in processing complex shapes.

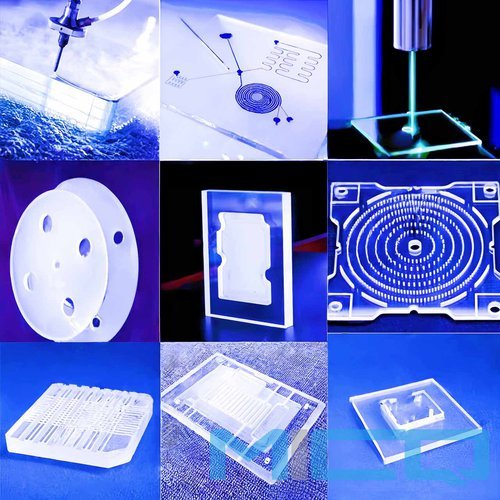

Laser processing, especially the emergence of ultrafast laser (picosecond and femtosecond lasers) technology, provides a perfect solution for high-precision and high-quality processing of quartz/silica wafers.

Fused Quartz Glass Features:

Fused quartz glass is a special industrial glass made of silicon dioxide. It is a very good basic material. Quartz glass has a series of excellent physical and chemical properties.

1. High temperature resistance. The softening point of fused quartz glass is about 1730℃ and can be used for long time working under 1100℃~1250℃.  And working at 1450℃ in a short time.

2. Corrosion resistance. In addition to hydrofluoric acid, fused quartz glass is inert to other acids. Its acid resistance is 30 times as ceramic, 150 times as stainless steel. Especially, any other material cannot make a comparison with chemical stability of fused quartz at high temperature

3. The thermal stability is good. Thermal expansion coefficient is extremely small. And it can withstand severe temperature changes such that heating up to 1100℃ and putting it in normal temperature water will not crack.

4. The light transmittance is good. Quartz glass has good transmittance in the whole spectral band from ultraviolet to infrared. The transmittance of the visible light is above 95%. Especially in the ultraviolet spectrum band and the maximum transmittance is over 85%.

5. The electrical insulation performance is good. Resistance value of quartz glass equaling to 10000 times of ordinary glass. It is an excellent electrical insulating material and has good electrical properties even under high temperature.

As a leading China fused quartz glass supplier and manufacturer, we are providing best price as well as quality for all kinds of customized fused quartz products. We are also willing to look for long term partners who are a distributor or wholesaler specialized in fused quartz glass in local.

For prompt quotation, please contact us at below form.

LEAVE A MESSAGE

Fused quartz glasses have the excellent properties for their following features:

• High working temperature
• Thermal shock resistance
• High electrical insulation
• Optical transparency
• Chemical inertness
