Quartz Glass XRD Sample Holders & Custom Slides for X-Ray Diffraction

Quartz Glass XRD Sample Holders & Custom Slides for X-Ray Diffraction

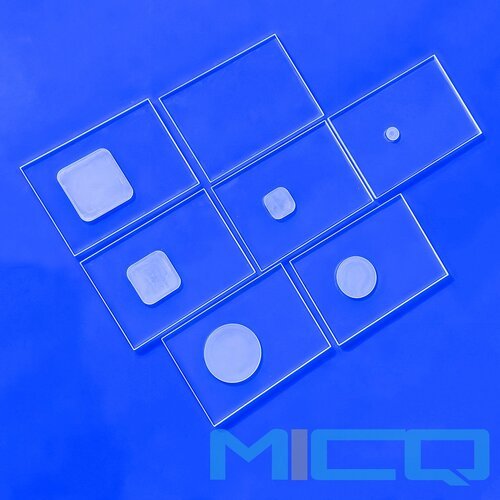

Our quartz glass XRD sample holders and slides are precision-engineered for X-ray diffraction analysis, offering exceptional performance in crystallography, materials science, and pharmaceutical research. Made from high-purity fused quartz, these substrates provide extremely low background noise, minimal thermal expansion, and excellent chemical resistance—ensuring accurate, reproducible results even under demanding conditions.

Quartz is the preferred material for XRD applications due to its amorphous structure and low X-ray absorption, which minimizes interference with diffraction patterns. Our holders are available in standard sizes to fit most commercial diffractometers, including flat plates, cavity holders, and zero-background slides.

Retail Ready: Stocked in small quantities for immediate shipment—ideal for research labs, universities, and quality control facilities. Choose from common dimensions and configurations.

Custom Solutions: For specialized applications, we offer full customization—non-standard sizes, unique thicknesses, custom cavities, engraved reference marks, and tight tolerances. Low minimum order quantities available for prototypes.

Whether you need a single slide or bulk production, we deliver consistent quality with fast turnaround. Contact us with your specifications.

Fused Quartz Glass Features:

Fused quartz glass is a special industrial glass made of silicon dioxide. It is a very good basic material. Quartz glass has a series of excellent physical and chemical properties.

1. High temperature resistance. The softening point of fused quartz glass is about 1730℃ and can be used for long time working under 1100℃~1250℃.  And working at 1450℃ in a short time.

2. Corrosion resistance. In addition to hydrofluoric acid, fused quartz glass is inert to other acids. Its acid resistance is 30 times as ceramic, 150 times as stainless steel. Especially, any other material cannot make a comparison with chemical stability of fused quartz at high temperature

3. The thermal stability is good. Thermal expansion coefficient is extremely small. And it can withstand severe temperature changes such that heating up to 1100℃ and putting it in normal temperature water will not crack.

4. The light transmittance is good. Quartz glass has good transmittance in the whole spectral band from ultraviolet to infrared. The transmittance of the visible light is above 95%. Especially in the ultraviolet spectrum band and the maximum transmittance is over 85%.

5. The electrical insulation performance is good. Resistance value of quartz glass equaling to 10000 times of ordinary glass. It is an excellent electrical insulating material and has good electrical properties even under high temperature.

As a leading China fused quartz glass supplier and manufacturer, we are providing best price as well as quality for all kinds of customized fused quartz products. We are also willing to look for long term partners who are a distributor or wholesaler specialized in fused quartz glass in local.

For prompt quotation, please contact us at below form.

LEAVE A MESSAGE

Fused quartz glasses have the excellent properties for their following features:

• High working temperature
• Thermal shock resistance
• High electrical insulation
• Optical transparency
• Chemical inertness
