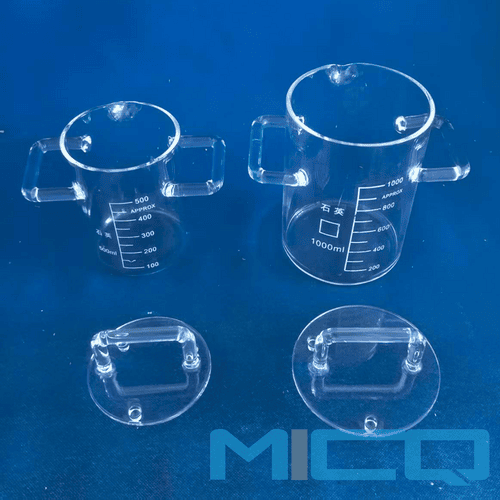

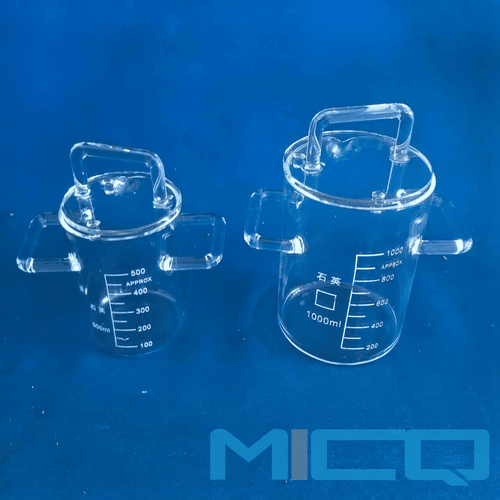

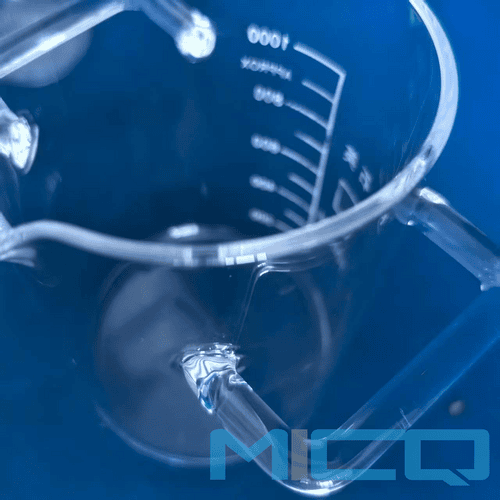

Larger and Thick Quartz Glass Beaker/Container/Tank with Scale

Larger and Thick Quartz Glass Beaker/Container/Tank with Scale

The large-sized and thicker quartz beaker/container/tank with scale is a precision ware designed specifically for high-temperature and corrosive laboratory environments. It is made of high-purity quartz glass and has excellent high temperature resistance, chemical stability, and transparency. The thickened wall design enhances durability, and the scale markings facilitate direct measurement of liquid volume, making it widely used in high-precision experiments in fields such as chemistry, biology, and pharmaceuticals.

Product features:
Large capacity design: Provides large capacity specifications such as 1000ml, 2000ml, 3000ml, etc. to meet the needs of laboratory large-scale processing
Thickened wall design: quartz glass thickness increases, improving durability and impact resistance

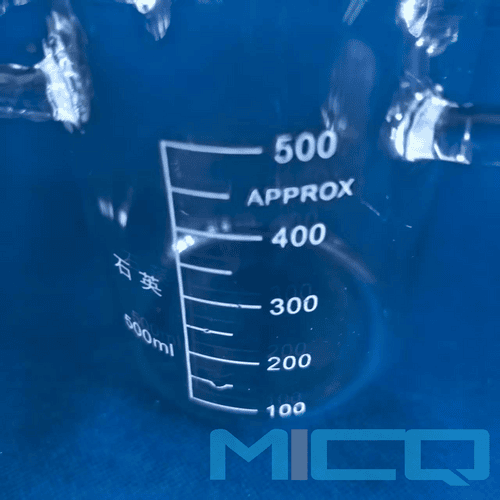

Accurate Scale: High precision permanent scale lines for accurate measurement of liquid volume
High purity quartz material: with excellent high temperature resistance (able to withstand temperatures above 1200 ℃) and chemical stability
Resistant to rapid cooling and heating: With a small coefficient of thermal expansion, it can withstand sudden temperature changes
Transparent and clear: high transparency facilitates observation of the reaction process
Application areas:
High-temperature chemical reaction
Strong acid and strong alkali environment experiment
Semiconductor manufacturing process
Precision Analysis Experiment
Synthesis of special materials

Fused Quartz Glass Features:

Fused quartz glass is a special industrial glass made of silicon dioxide. It is a very good basic material. Quartz glass has a series of excellent physical and chemical properties.

1. High temperature resistance. The softening point of fused quartz glass is about 1730℃ and can be used for long time working under 1100℃~1250℃.  And working at 1450℃ in a short time.

2. Corrosion resistance. In addition to hydrofluoric acid, fused quartz glass is inert to other acids. Its acid resistance is 30 times as ceramic, 150 times as stainless steel. Especially, any other material cannot make a comparison with chemical stability of fused quartz at high temperature

3. The thermal stability is good. Thermal expansion coefficient is extremely small. And it can withstand severe temperature changes such that heating up to 1100℃ and putting it in normal temperature water will not crack.

4. The light transmittance is good. Quartz glass has good transmittance in the whole spectral band from ultraviolet to infrared. The transmittance of the visible light is above 95%. Especially in the ultraviolet spectrum band and the maximum transmittance is over 85%.

5. The electrical insulation performance is good. Resistance value of quartz glass equaling to 10000 times of ordinary glass. It is an excellent electrical insulating material and has good electrical properties even under high temperature.

As a leading China fused quartz glass supplier and manufacturer, we are providing best price as well as quality for all kinds of customized fused quartz products. We are also willing to look for long term partners who are a distributor or wholesaler specialized in fused quartz glass in local.

For prompt quotation, please contact us at below form.

LEAVE A MESSAGE

Fused quartz glasses have the excellent properties for their following features:

• High working temperature
• Thermal shock resistance
• High electrical insulation
• Optical transparency
• Chemical inertness
